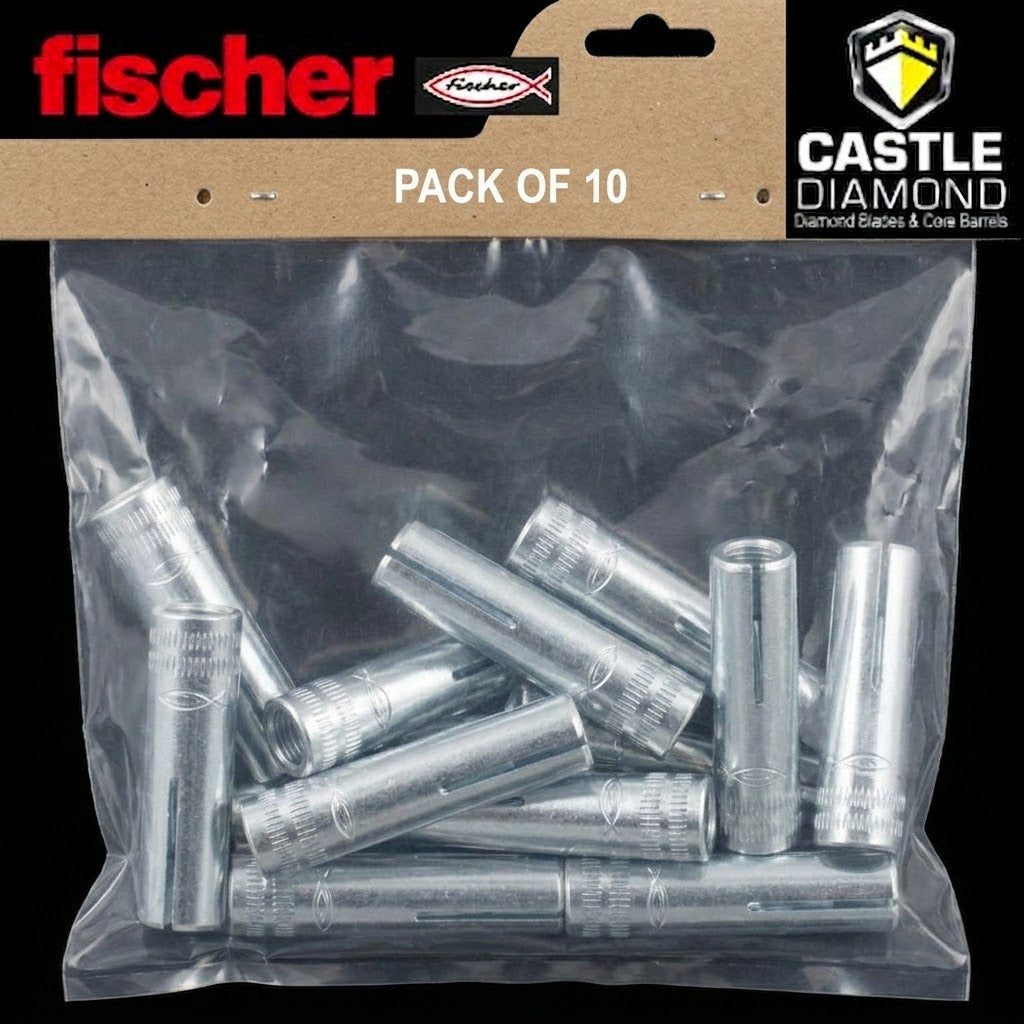

M12 Drop in Anchor 10 Pack

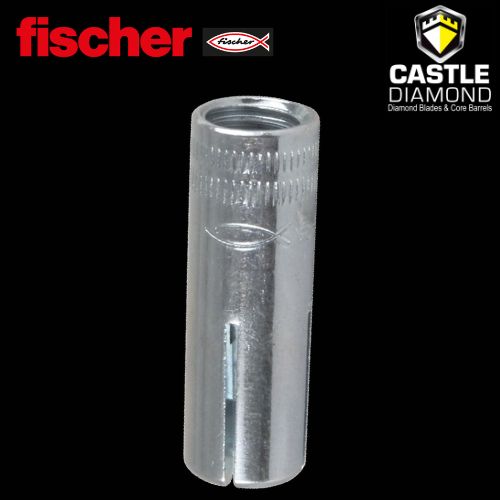

The Fischer EA N M12 x 50 drop-in anchor is a high-performance internal threaded steel fixing designed for reliable anchoring into concrete substrates. Engineered for fast hammer-set installation, it provides a secure and reusable internal thread for bolts and threaded rods, making it ideal for professional mechanical and electrical installations.

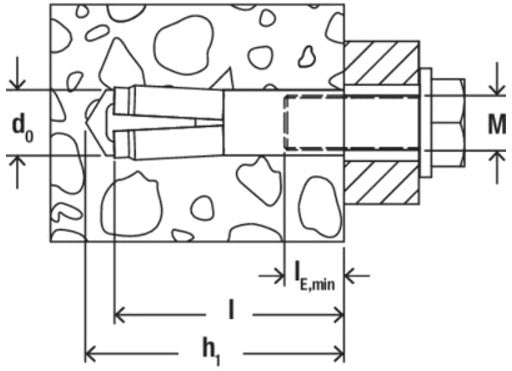

This M12 drop-in anchor is installed flush into a pre-drilled 15 mm hole and expanded using a setting tool, creating a strong mechanical lock within the concrete. Once set, it allows standard M12 bolts or threaded rods to be inserted and removed as required, offering flexibility for maintenance and adjustments.

Manufactured from zinc-plated steel (GVZ), it is suitable for indoor applications in non-cracked concrete where multiple fixings of non-structural systems are required.

Key Features

• M12 internal thread for standard metric bolts
• Fast hammer-set installation
• Expansion via setting tool for secure anchoring
• Low embedment depth for efficient installation
• Zinc-plated steel for corrosion resistance in dry indoor environments

Applications

• Cable trays and electrical conduit systems
• Pipe supports and HVAC installations
• Steel brackets and light-duty structural supports
• Mechanical service fixings in concrete

Installation Overview

Drill the correct diameter hole, insert the anchor flush, hammer-set into position, then expand using the appropriate setting tool. No torque is applied during expansion, ensuring correct anchoring performance.
